| Basic technical parameters | |||
| Parameter name | Company | Model and specification | |
| RX01-W-G1.6 | RX01-W-G2.5 | ||
| Maximum flow | m3/h | 2.5 | 4 |
| Minimum flow | m3/h | 0.016 | 0.025 |
| Maximum working pressure | kPa | 10 | |
| Maximum allowable value of pressure loss | Pa | 250 | |
| Maximum allowable error | / | qmin≤q＜qt時， ±3% | |
| qt≤q＜qmax時， ±1.5% | |||
| Tightness | kPa | Input air 1.5 times the maximum working pressure for three minutes without leakage | |
| Long term operation performance | / | It shall meet the requirements of national standard GB / t6968-2019 membrane gas meter after running for 5000h under the maximum flow | |
| Service temperature | ℃ | -10~+40 | |
| Accuracy class | Grade | 1.5 | |
| Motor valve life | Frequency | ≥10000 | |
| Supply voltage | / | DC：3.6V lithium battery | |
| Static working current | μA | ≤5 | |
| Frequency | MHz | 470~510 | |
| Occupied broadband | kHz | 32 | |
Wireless transmission power | dBm | ≤17 | |

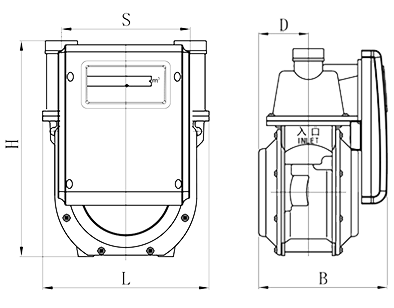

Dimension drawing：
| Model / Size | M | S | L | B | H | D | Quality（kg） |
RX01-W-G1.6 RX01-W-G2.5 | M30×2 | 130 | 199 | 157 | 213 | 63 | 1.7 |
